How to reset path handles on anchor point
denzjos Offline
Gimper extraordinaire
***
Posts: 1,147
Threads: 178
Joined: Sep 2018
Reputation: 114
Operating system(s):
  • Windows (Vista and later)

Gimp version: 2.10
#1
09-29-2019, 01:40 PM (This post was last modified: 09-29-2019, 02:25 PM by denzjos.)
Is there a way in gimp to reset the handles on an anhor point (set to zero) . On a drawing where I stroke straight lines in black resulted in some lines that are half black and the other end a sort of half grey.  After moving the handles to zero (I think) The left line is ok the right line is not ok. The paths are snapped to grid ( grid on 1 point distance). I think some handles are not set to zero with the result that the straight lines are a little bend withe the result that some lines are not stroked in full black.  Thanks for a sollution in advance.


.xcf   spring flap nok.xcf (Size: 20.73 KB / Downloads: 331)
Find
Reply
rich2005 Offline
Administrator
*****
Posts: 7,136
Threads: 155
Joined: Oct 2016
Reputation: 1,006
Operating system(s):
  • Linux

Gimp version: 2.10
#2
09-29-2019, 02:44 PM (This post was last modified: 09-29-2019, 02:48 PM by rich2005. Edit Reason: typo )

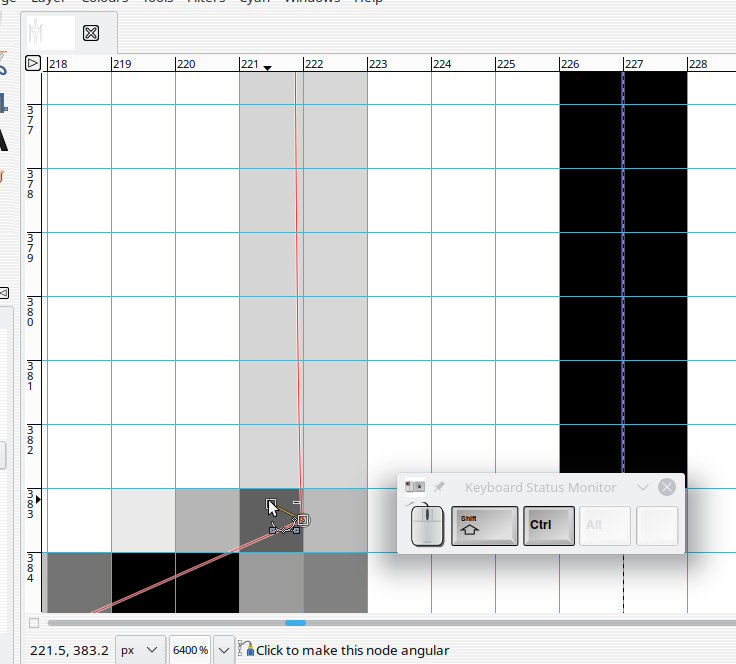

Shift-ctrl to put the path tool into subtract mode. Click on the handle to collapse it.

You have a very slight curve on that section of path, enough to apply antialiasing. (My path next to it)



One thing to note about stroking vertical and horizontal paths. Even with antialiasing enabled
Odd widths 1, 3, 5 ... introduce antialiasing
Even widths 2, 4, 6 ... no antialiasing



(of course you can always stroke with the paint tool)
Find
Reply
denzjos Offline
Gimper extraordinaire
***
Posts: 1,147
Threads: 178
Joined: Sep 2018
Reputation: 114
Operating system(s):
  • Windows (Vista and later)

Gimp version: 2.10
#3
09-29-2019, 03:23 PM
Much useful information. Thank you Rich
Find
Reply
Ofnuts Offline
Administrator
*****
Posts: 6,361
Threads: 275
Joined: Oct 2016
Reputation: 565
Operating system(s):
  • Linux

Gimp version: 2.10
#4
09-29-2019, 08:37 PM
I have a script that removes all these tiny tangents that do more harm than good. See ofn-remove-tangents here.
Find
Reply
denzjos Offline
Gimper extraordinaire
***
Posts: 1,147
Threads: 178
Joined: Sep 2018
Reputation: 114
Operating system(s):
  • Windows (Vista and later)

Gimp version: 2.10
#5
10-11-2019, 12:20 PM
Sorry for the late reaction Blush, but nice work Ofnuts, magic with lines. The script is working fine. Thanks.
Find
Reply
Blighty Offline
Obsessive Gimper
***
Posts: 851
Threads: 11
Joined: Oct 2016
Reputation: 89
Operating system(s):
  • Windows (Vista and later)

Gimp version: 2.10
#6
10-11-2019, 02:30 PM
(09-29-2019, 01:40 PM)denzjos Wrote: Is there a way in gimp to reset the handles on an anhor point (set to zero) . On a drawing where I stroke straight lines in black resulted in some lines that are half black and the other end a sort of half grey.  After moving the handles to zero (I think) The left line is ok the right line is not ok. The paths are snapped to grid ( grid on 1 point distance). I think some handles are not set to zero with the result that the straight lines are a little bend withe the result that some lines are not stroked in full black.  Thanks for a sollution in advance.

I have just been playing with this. The best solution is the ofn-remove-tangents.

I found another way. First use the Ofnuts Reverse-Strokes, then stroke the path. I have no idea why it works, but it does.
