01-13-2019, 06:52 PM
In this discussion I've searched for another sollution and I found one in the GMIC filters.
1/ make a new square layer

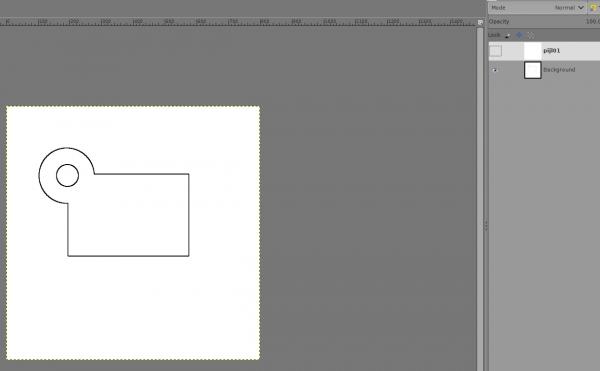

2/ make a drawing on the layer
3/ make new layer (white / remove alpha channel)

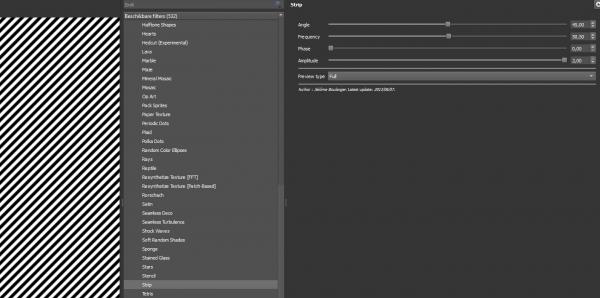

4/ activate filter : G'MIC QT / patterns / strip and change parameters (different distances between the hatch lines ar possible)
6/ copy the new layer and select subtract from the layer below

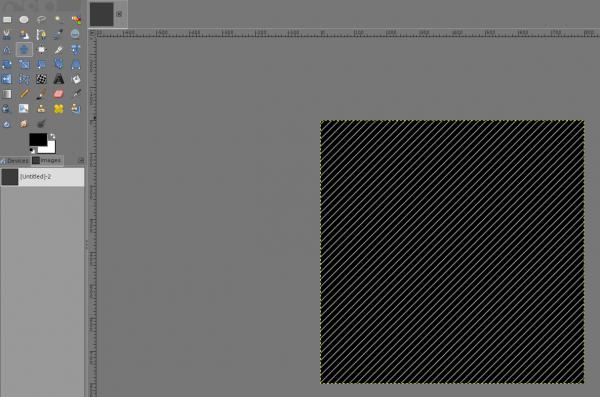

7/ move the layer a few steps left or right
8/ merge down the layer and invert the color of the new layer
9/ make the layer invisible and select the layer with the drawing

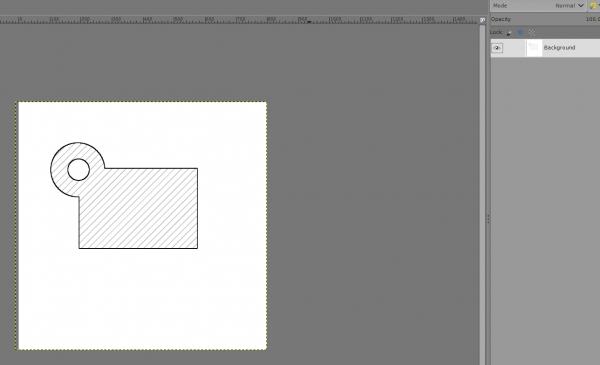

10/ select the inside of the drawing with the fuzzy select tool
11/ invert the selection
12/ delete the selection (and merge the layers)
Denzjos
