Path Tool
#7
Completely different solution:

  • Create an image with is the size of the road times N (or N*M)
  • Fill a red layer
  • Fill a green layer over it
  • Set the green layer to Dissolve mode and reduce opacity taste

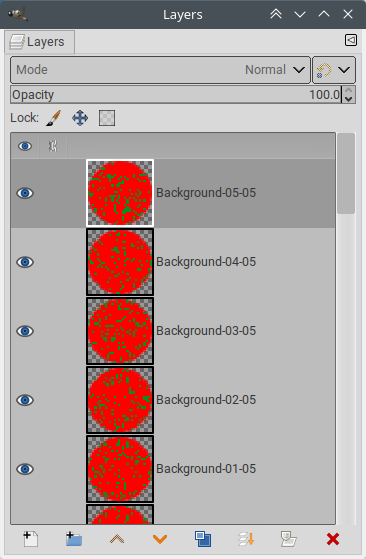

  • Split the layer into N (or N*M) stacked layers (see ofn-layer-tiles for instance)
  • Make a circle selection, invert it and clear the selection in all layers (see clear-layers, for instance)
  • At that point you have an image made of many layers that are all red circles with random green dots

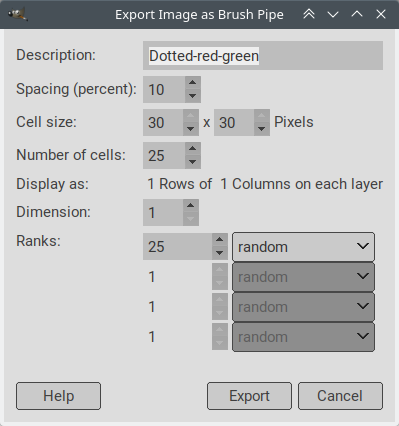

  • Export the image as a Gimp Image Hose (.gih) brush in one of our brushes directory

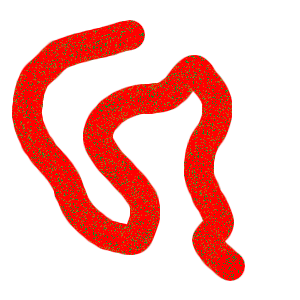

  • Refresh your brushes list, select the brush and there you go (you can use the brush manually or stroke a path with it).:


ZIP with GIH brush and XCF source:


Attached Files
.zip   Red-Green-Dots.zip (Size: 18.65 KB / Downloads: 67)
