How to remove out of gamut marker in the color chooser dialog?

Thread Rating:
  • 0 Vote(s) - 0 Average
  • 1
  • 2
  • 3
  • 4
  • 5
Thread Modes
How to remove out of gamut marker in the color chooser dialog?
Drachenbauer Offline
Junior Gimper
**
Posts: 11
Threads: 4
Joined: Aug 2021
Reputation: 0
Operating system(s):
  • Windows Vista or 7, 8, 10 (64-bit)

Gimp version: 2.8
#1
09-11-2021, 01:33 PM (This post was last modified: 09-11-2021, 01:35 PM by Drachenbauer.)
Hallo

In the actual gimp-version the sliders of the color chooser dialog are to a big amount covered in the out-of-gamut-marker-color.
How can i remove this overlay?
Find
Reply
rich2005 Offline
Administrator
*****
Posts: 7,142
Threads: 155
Joined: Oct 2016
Reputation: 1,006
Operating system(s):
  • Linux

Gimp version: 2.10
#2
09-11-2021, 01:49 PM
(09-11-2021, 01:33 PM)Drachenbauer Wrote: Hallo

In the actual gimp-version the sliders of the color chooser dialog are to a big amount covered in the out-of-gamut-marker-color.
How can i remove this overlay?

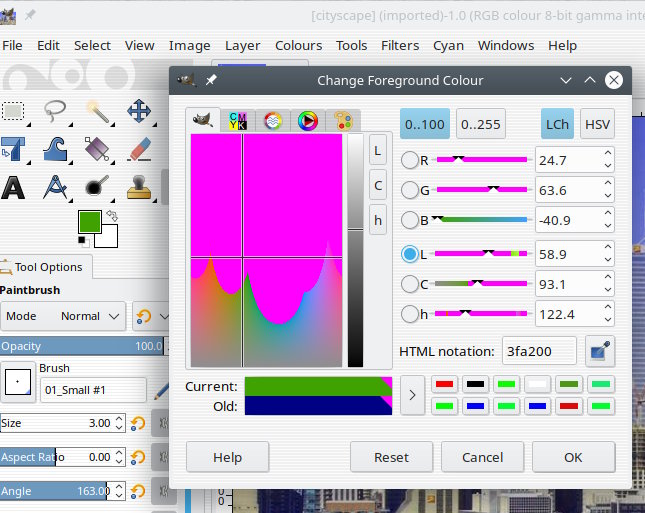

Do you mean you have something like this ?

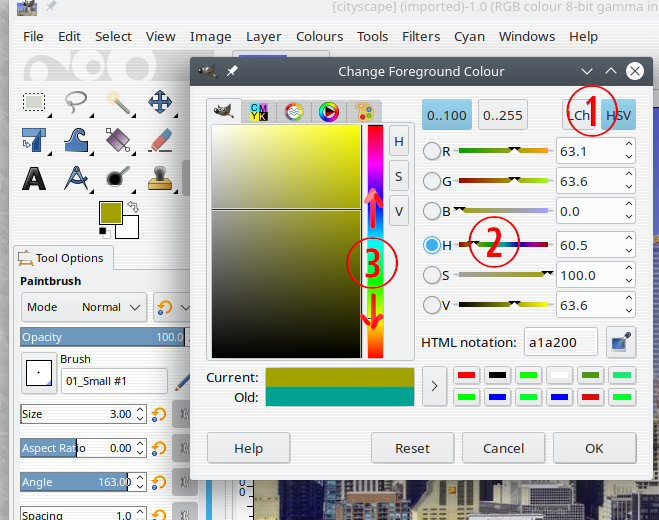

..but want something like this..



Change to the HSV model. (1) Enable the Hue slider (2) Click in the vertical (specrum) bar (3)
Find
Reply
Drachenbauer Offline
Junior Gimper
**
Posts: 11
Threads: 4
Joined: Aug 2021
Reputation: 0
Operating system(s):
  • Windows Vista or 7, 8, 10 (64-bit)

Gimp version: 2.8
#3
09-11-2021, 09:01 PM (This post was last modified: 09-11-2021, 09:07 PM by Drachenbauer.)
Yes, this is exactly right.
will the change stay forever after doing your steps?

Edit:
after i picked a color from the actual opened graphic-file, the sliders are covered in that marker-color again and i see values, that are higher than the normal maximum of the sliders...

how to fix this?
Find
Reply
rich2005 Offline
Administrator
*****
Posts: 7,142
Threads: 155
Joined: Oct 2016
Reputation: 1,006
Operating system(s):
  • Linux

Gimp version: 2.10
#4
09-12-2021, 08:45 AM
Gimp will start a session with the 'change fg/bg colour' picker in LCh mode.
There have been requests to the developers have an option for a user to set a default HSV. Once set to HSV mode it will stay as that until either you change the mode or you close and re-start Gimp.

A 50 second animation of what I see: Two images which I know contain out-of-gamut colours. Switching between LHc and HSV https://i.imgur.com/RU7MiQJ.mp4
